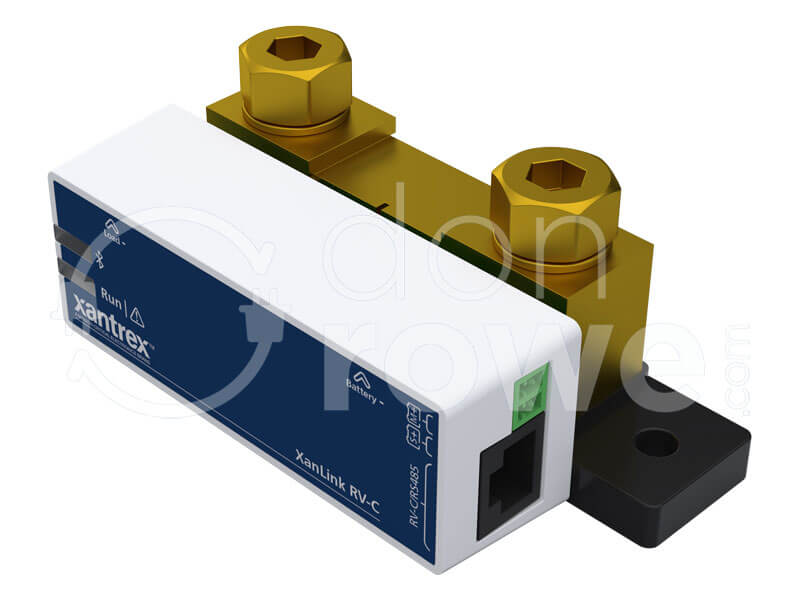

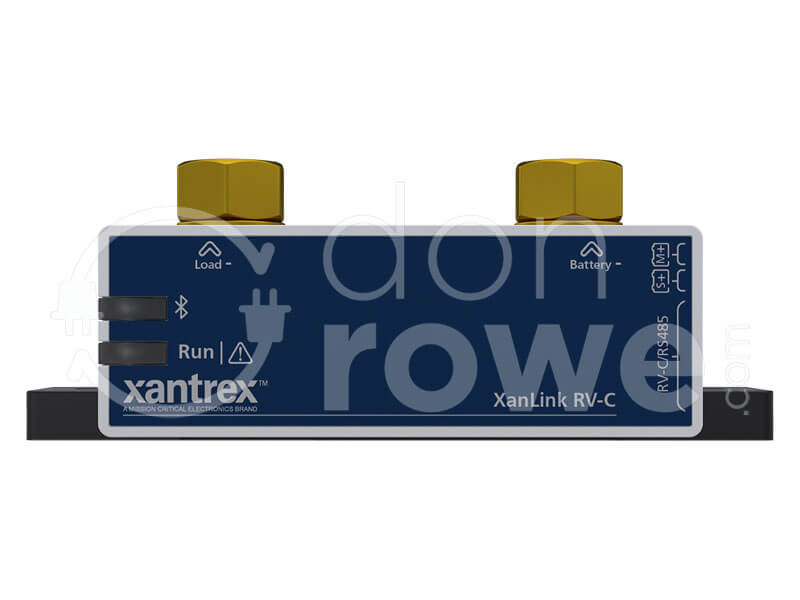

Xantrex XanLink RV-C Battery Monitor 854-2033
Xantrex XanLink RV-C Battery Monitor 854-2033
Free UPS Ground Shipping

Alternative Views:
List Price: $372.19
Price: $319.00
Sale Price: $259.99


Free Shipping
Product Code: 854-2033

Description Specifications Related Documents

Determining your battery’s remaining capacity can be challenging due to factors like age, discharge current, and temperature. The XanLink battery monitor simplifies this process, providing accurate and reliable readings of your battery’s remaining power. Capable of measuring currents up to 500A, the XanLink ensures precise monitoring, giving you full control over your battery’s state of charge.

Monitor your battery’s performance directly from your phone with the Xantrex app. Receive real-time updates on your battery’s state of charge and more. The intuitive interface ensures you have all the information you need to manage power usage and plan your next trip with confidence.

With RV-C communication, the XanLink seamlessly integrates with your RV’s multiplex systems, providing enhanced connectivity and real-time data exchange. This allows you to monitor and control your battery system alongside other essential RV components, streamlining your setup and ensuring you have all the information you need at your fingertips.

  • Product Features

    • Compatible with 12V, 24V, 36V, and 48V battery systems
    • Supports sealed lead-acid, AGM, gel, flooded, and lithium battery types
    • Measures charge and discharge currents up to 500A (500A/50mV shunt)
    • Advanced SOC algorithm tracks state of charge, remaining runtime, and cycle count
    • Built-in Bluetooth for wireless monitoring via the Xantrex app (iOS and Android)
    • RV-C CAN bus integration for onboard multiplex system compatibility
    • NMEA 2000 support via built-in Micro-C connector for marine network integration
    • RJ45 port for RV-C and RS-485 communications
    • Over-the-air (OTA) firmware updates via Bluetooth
    • Optional starter/auxiliary battery voltage monitoring
    • Up to 60 days of historical battery data accessible through the app
    • Configurable alarms for low SOC, overcurrent, and high/low voltage
    • Safety certified to UL/CSA 62368-1 and EN 62368-1
    • FCC Part 15 Subpart C
    • IP21 ingress protection rating
    • 2-year warranty
